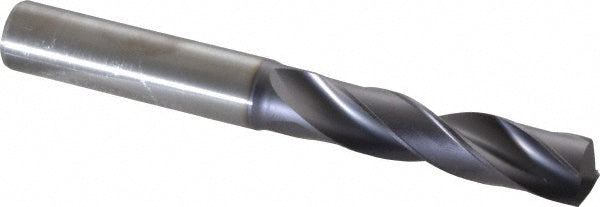

0.4409" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1913499
MFR# 1913499Series B966A
$146.17List $187.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 1913499 is a 0.4409" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B966A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeDynapoint High Performance
Drill bit size0.4409
Drill bit size range0.4000 to 0.4500
Drill point angle140
Drill point length (mm)1.90
Flute length (mm)55.00
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth1.5748
Number of flutes2
Overall length4.0157
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
