Kennametal

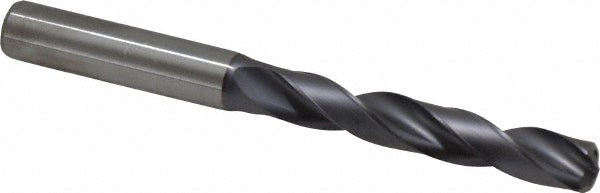

0.3543" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1913585
MFR# 1913585
$190.66List $244.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Kennametal 1913585 is a 0.3543" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3543
Drill bit size range0.3500 - 0.4000
Drill point angle degrees140
Drill point length (mm)1.50
Flute length2.4016
Flute typeRegular Spiral
Maximum drilling depth1.9291
Overall length4.0551
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
