Kennametal

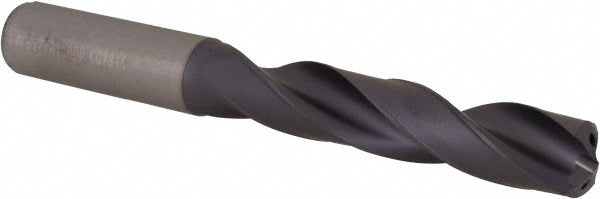

0.5906" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1913606
MFR# 1913606
$465.82List $597.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Kennametal 1913606 is a 0.5906" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5906
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length (mm)2.60
Flute length3.2677
Flute typeRegular Spiral
Maximum drilling depth2.4803
Overall length5.2362
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.6299
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
