0.2165" Solid Carbide Drill Bit, TiAlN, 132° point - Kennametal 1913619
MFR# 1913619Series B978
$211.41List $271.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description

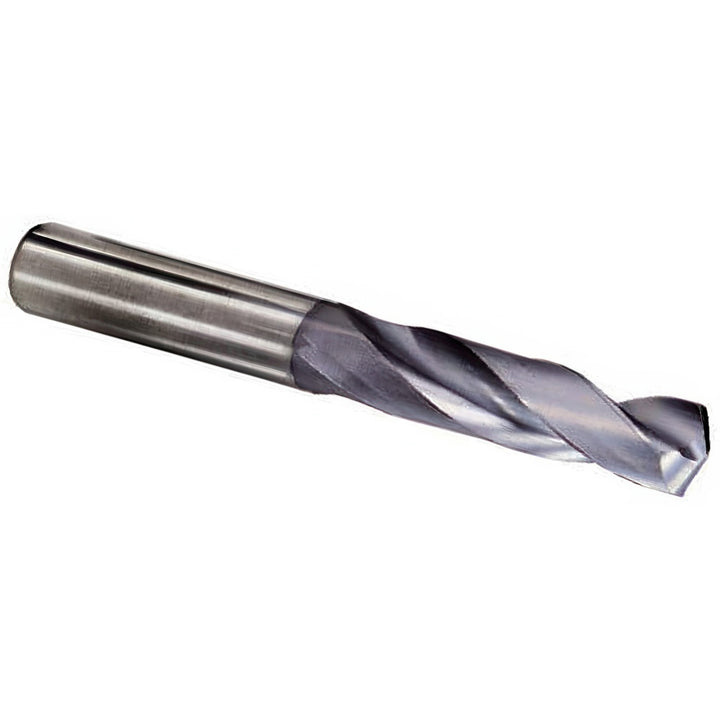

The Kennametal 1913619 is a 0.2165" Solid Carbide drill bit with a TiAlN finish, 132° point. Series B978.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size0.2165
Drill point angle degrees132
Drill point length0.0449
Flute length2.2047
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth1.8898
Overall length3-3/4
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
