Kennametal

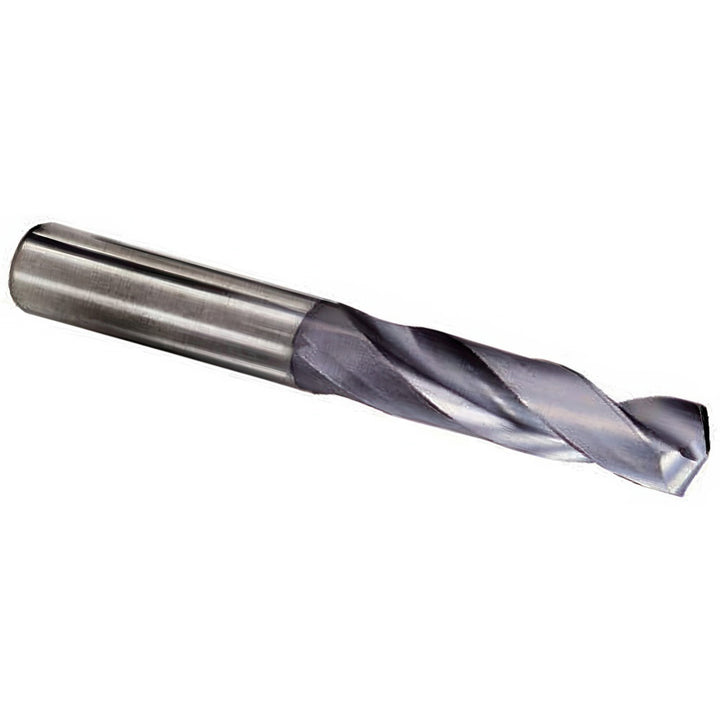

0.3150" Solid Carbide Drill Bit, TiAlN, 132° point - Kennametal 1913626
MFR# 1913626Series B978
$279.10List $357.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Kennametal 1913626 is a 0.3150" Solid Carbide drill bit with a TiAlN finish, 132° point. Series B978.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size0.3150
Drill point angle degrees132
Drill point length0.0661
Flute length2.8346
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth2.4016
Overall length4-2/4
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
