Kennametal

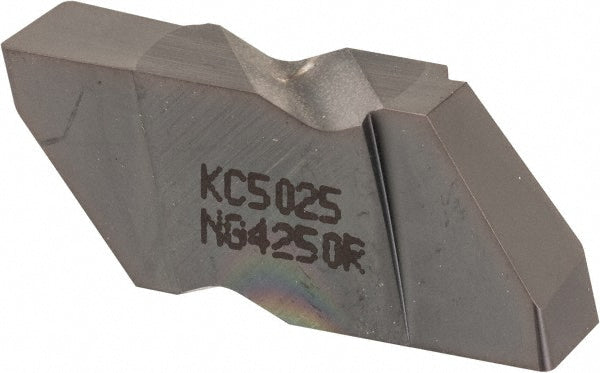

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1914364
MFR# 1914364Series Top Notch
$48.90List $59.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1914364 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0225
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.4530
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNG4250R
Multi use toolNo
RakeNeutral
