Kennametal

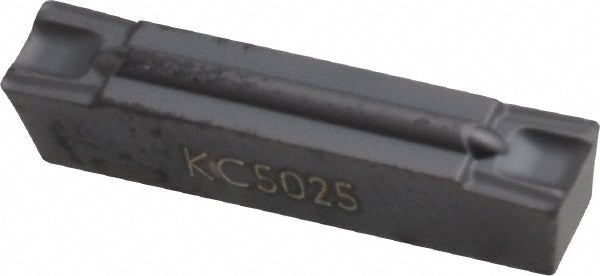

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1923838
MFR# 1923838Cat# A4G0505M05U04GMPSeries A4
$39.46List $48.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1923838 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerGMP
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1988
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0505M0
Insert styleG
Manufacturers catalog numberA4G0505M05U04GMP
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1654
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length0.9843
RakePositive
