Kennametal

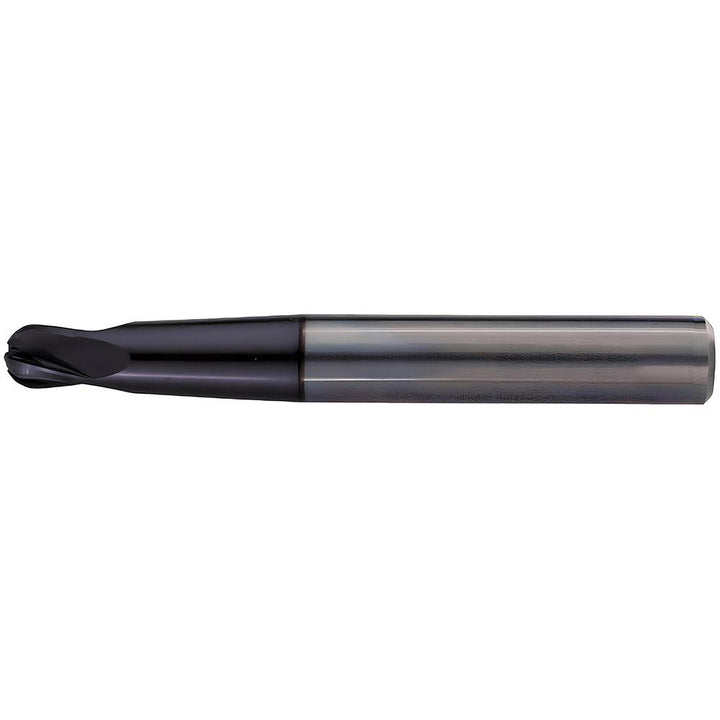

3/16" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 1925140
MFR# 1925140Cat# HPBNDM188S4019Series HPBNDM
$101.60List $130.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1925140 is a 3/16 4-flute Solid Carbide (C2) ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, hardened materials. 3/16 length of cut, 3 overall length. Series HPBNDM.
Specifications
Additional informationCenter Cutting for Plunging & Ramping Operations. Solid Carbide End Mills for Machining of Hard Materials Greater Than 60Hrc.
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle15
Helix styleLow
Length of cut in3/16
Length typeExtended
Manufacturers catalog numberHPBNDM188S4019
Material gradeC2
Material removal typeFinishing
Mill diameter in3/16
Mill diameter tolerance-0.0000/-0.0020 in
Neck length0.7141
Nose radius0.0938
Number of flutes4
Overall length in3
Primary workpiece materialSteel; Hardened Materials
Reach length0.9016
Shank diameter in1/4
Shank diameter tolerance+0.0000/-0.0031 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
