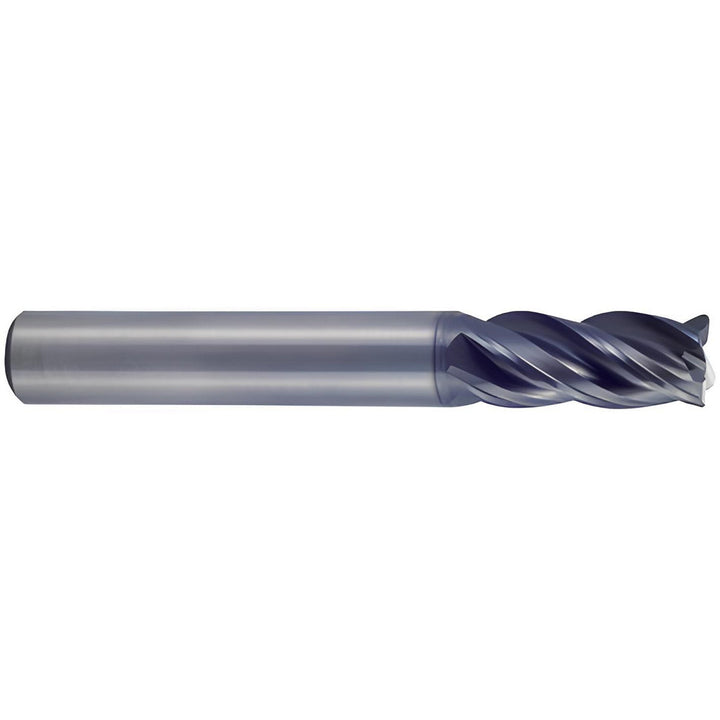

3/16" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 UGMF70012

MFR# UGMF70012Series UGMF70

$35.23List $45.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

Description

The YG-1 UGMF70012 is a 3/16 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron. 3/16 length of cut, 2 overall length. Series UGMF70.

Specifications

Additional informationSpecial Flute Geometry & Multiple Helix Eliminate Vibrations. Excellent Performance for Stainless SteelsMild SteelsCast IronLow/Medium Hardness Materials & All Exotic Materials Up to Hrc40. Advanced Coating for Superior Performance & Tool Life

CentercuttingYes

ChipbreakerNo

Coolant throughNo

Corner radius0.0100

Corner radius tolerance+0.0008 to -0.0008 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in3/16

Length typeStandard

Manufacturers catalog numberUGMF70012

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0012 in

Number of flutes4

Overall length in2

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in3/16

Secondary workpiece materialSuperalloys & Titanium

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
