Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 1952768
MFR# 1952768Cat# A4G0400M04P08GMPSeries A4
$41.84List $51.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

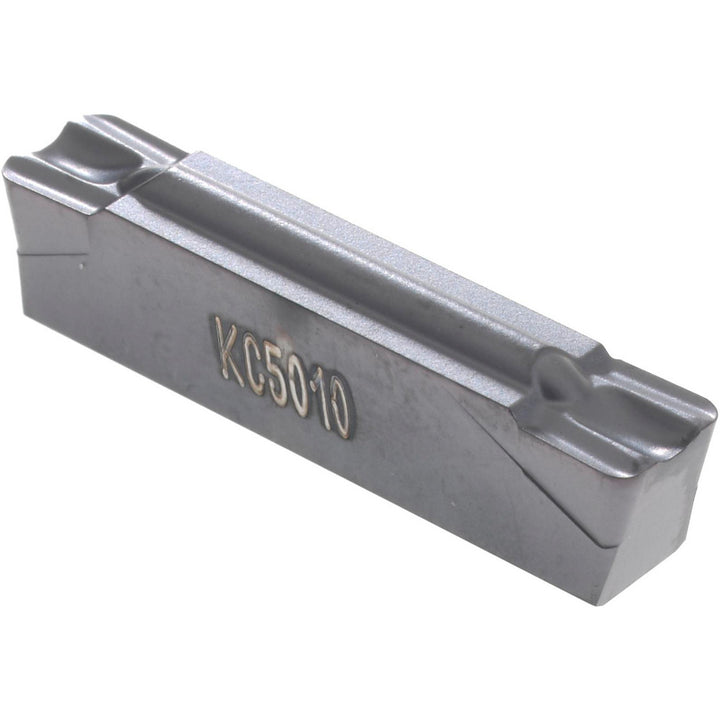

The Kennametal 1952768 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMP
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size400
Insert styleG
Manufacturers catalog numberA4G0400M04P08GMP
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
RakePositive
