Kennametal

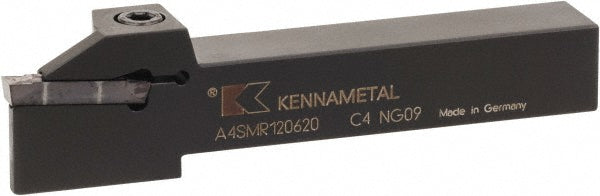

Indexable Grooving - Kennametal 1957224
MFR# 1957224Series A4
$186.66List $227.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1957224 indexable grooving. Series A4.
Specifications
Coolant throughNo
Full radius insertNo
Hand of holderRight Hand
Head height1.0300
Head length1.3800
Insert compatibilityA4..04..
Insert holding methodClamp
Insert seat size4.0
Maximum depth of cut0.5500
Minimum groove width0.1570
Overall length (mm)127.00
Shank height in5/8
Shank length3.6220
Shank width diameter in5/8
Toolholder styleA4SM
