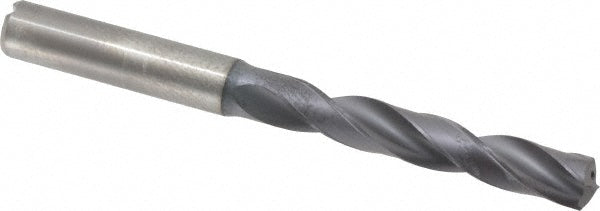

0.3504" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1971763

Kennametal

0.3504" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1971763

MFR# 1971763

$190.66List $244.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

The Kennametal 1971763 is a 0.3504" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3504
Drill bit size range0.3500 - 0.4000
Drill point angle degrees140
Drill point length (mm)1.50
Flute length2.4016
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)49.00
Overall length4.0551
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
