Kennametal

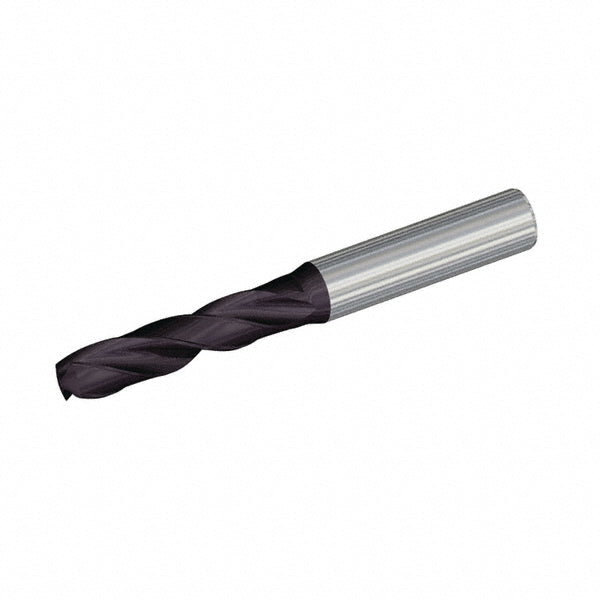

0.5197" Solid Carbide Stub Drill Bit, TiAlN, 140° point - Kennametal 1972376
MFR# 1972376Series B966A
$150.02List $192.40
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 1972376 is a 0.5197" Solid Carbide Stub drill bit with a TiAlN finish, 140° point. Series B966A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0003 to +0.0010 in; +0.007 to +0.025 mm
Drill bit size0.5197
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle140
Drill point length0.0895
Flute by diameter ratio3xD
Flute length2.3622
Flute typeRegular Spiral
Maximum drilling depth1.6929
Number of flutes2
Overall length4.2126
Point typeStandard
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6535
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
