Kennametal
0.2441" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1982397
MFR# 1982397Series B966A
$95.54List $122.36
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

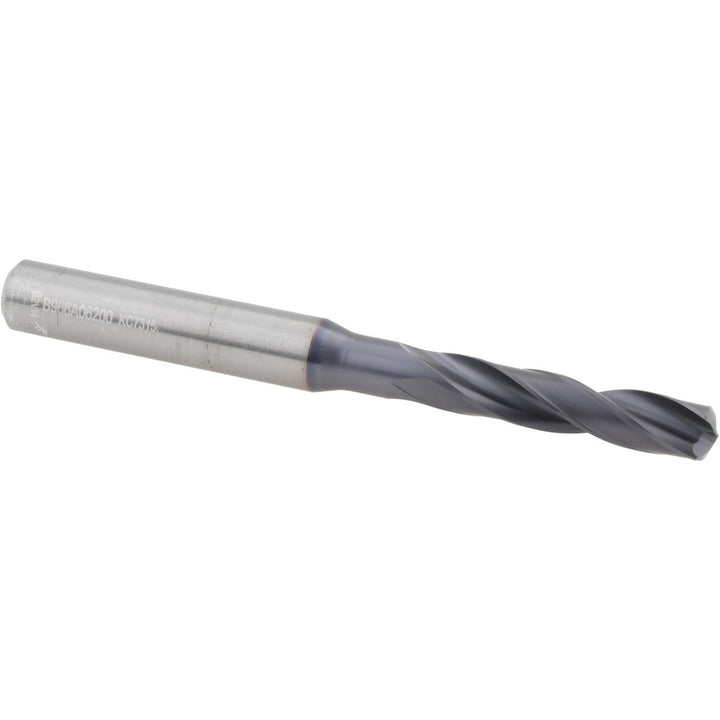

The Kennametal 1982397 is a 0.2441" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B966A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeDynapoint High Performance
Drill bit size0.2441
Drill bit size range0.2000 to 0.2500
Drill point angle140
Drill point length (mm)1.00
Flute length (mm)34.00
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
