Kennametal

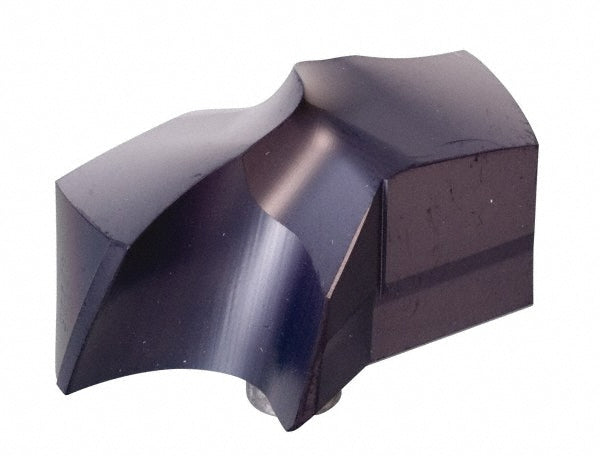

Carbide Insert, Grade KC7315, TiAlN - Kennametal 2036703
MFR# 2036703Series KSEM
$284.56List $347.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN
Description
The Kennametal 2036703 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.2992
DrillingStackedPlates
Drill point angle140
Flute length (mm)16.00
Flute typeHelical
Functional length0.6495
Height (mm)16.00
Included angle degree140
Insert geometryHP
Insert holding methodClamp
Insert seat size9
Iso numberKSEM3300HPM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.6495
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
