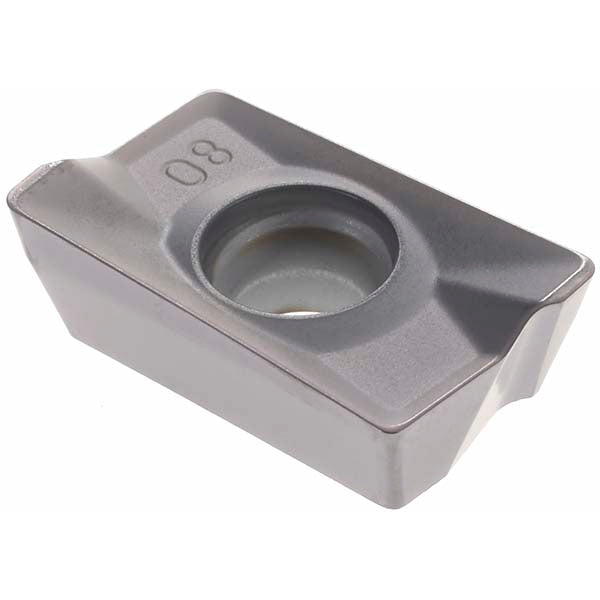

APPT1604PDERGD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 2042790
MFR# 2042790ISO/ANSI# APPT1604PDERGDCat# APPT1604PDERGDSeries APPT
$31.47List $38.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2042790 is a APPT1604PDERGD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPPT
Iso codeAPPT1604PDERGD
Length0.6787
Length range0.6500 to 0.7000
Manufacturers catalog numberAPPT1604PDERGD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Primary workpiece materialCast Iron
Rake angle15
Relief angle11.00
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.3713
