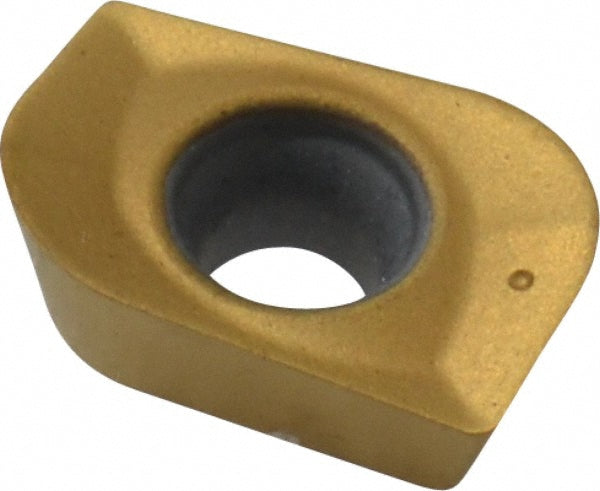

ADKT103532PDERLC Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2043239
MFR# 2043239ISO/ANSI# ADKT103532PDERLCCat# ADKT103532PDERLCSeries ADKT
$29.56List $36.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2043239 is a ADKT103532PDERLC solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLC
Coating finishTiN
Coating processPVD
Corner radius0.1260
Hole diameter0.1142
Included angle degree85
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code16228
Insert styleADKT
Iso codeADKT103532PDERLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT103532PDERLC
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
