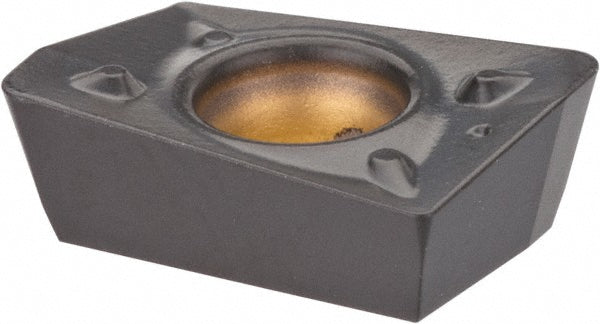

ADKT1035PDSRLC Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2209970
MFR# 2209970ISO/ANSI# ADKT1035PDSRLCCat# ADKT1035PDSRLCSeries ADKT
$31.09List $37.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2209970 is a ADKT1035PDSRLC solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Chip breakerLC
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1142
Included angle degree85
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1622
Insert styleADKT
Iso codeADKT1035PDSRLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT1035PDSRLC
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5000
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
