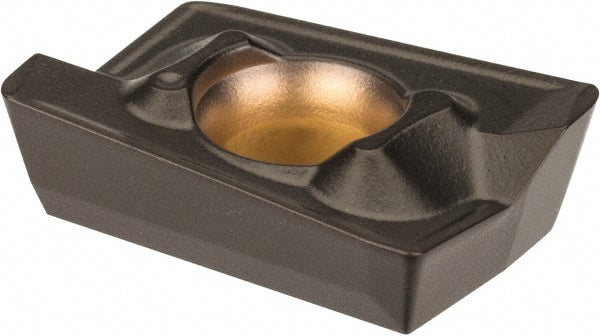

ADKT1545PDERGB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2209971

Kennametal

ADKT1545PDERGB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2209971

MFR# 2209971ISO/ANSI# ADKT1545PDERGBCat# ADKT1545PDERGBSeries ADKT

$51.74List $62.05 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2209971 is a ADKT1545PDERGB solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chip breakerGB
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size23
Insert size code2328
Insert styleADKT
Iso codeADKT1545PDERGB
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberADKT1545PDERGB
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Rake angle5
Relief angle15.00
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3937
