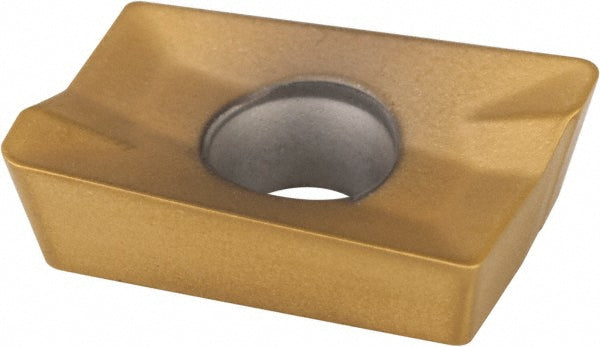

APPT120308PDERGD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2211209
MFR# 2211209ISO/ANSI# APPT120308PDERGDCat# APPT120308PDERGDSeries APPT
$27.43List $33.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2211209 is a APPT120308PDERGD solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGD
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1339
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size19
Insert size code1924
Insert styleAPPT
Iso codeAPPT120308PDERGD
Length in33/64
Length range0.5000 to 0.6000
Manufacturers catalog numberAPPT120308PDERGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC3; C4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle15
Relief angle11.00
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.3150
