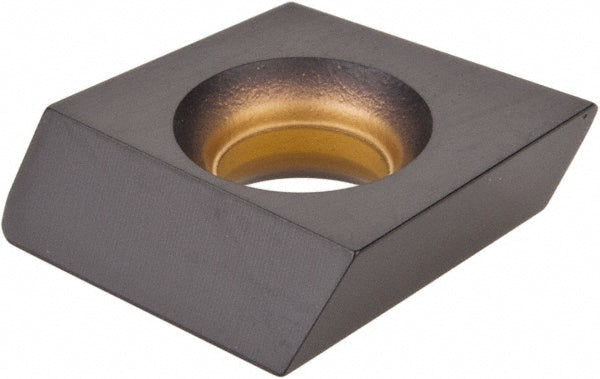

4.21103R611 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2226807

Kennametal

4.21103R611 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2226807

MFR# 2226807ISO/ANSI# 4.21103R611Cat# 4.21103R611Series 4.21103

$36.10List $44.07 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2226807 is a 4.21103R611 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Hole diameter0.1772
Inscribed circle in5/8
Inscribed circle range0.4000 to 0.5000
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size61
Insert size code611
Insert style4.21103
Iso code4.21103R611
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog number4.21103R611
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.3383
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
Thickness0.1580
Thickness range0.1500 to 0.1750
