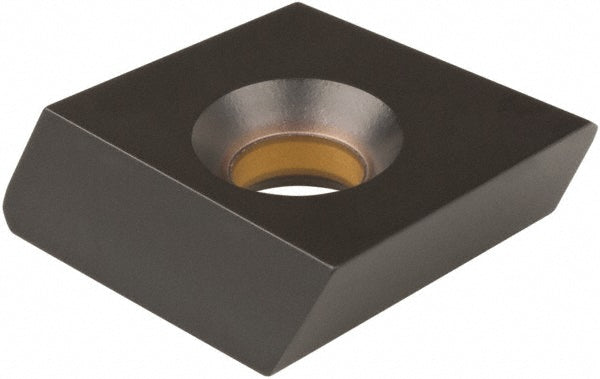

4.21503R611 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227103

Kennametal

4.21503R611 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227103

MFR# 2227103ISO/ANSI# 4.21503R611Cat# 4.21503R611Series 4.21503

$44.00List $53.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2227103 is a 4.21503R611 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Hole diameter0.1772
Inscribed circle0.5906
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size61
Insert size code611
Insert style4.21503
Iso code4.21503R611
Length0.5709
Length range0.5000 to 0.6000
Manufacturers catalog number4.21503R611
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
Thickness0.1970
Thickness range0.1850 to 0.2000
