Kennametal

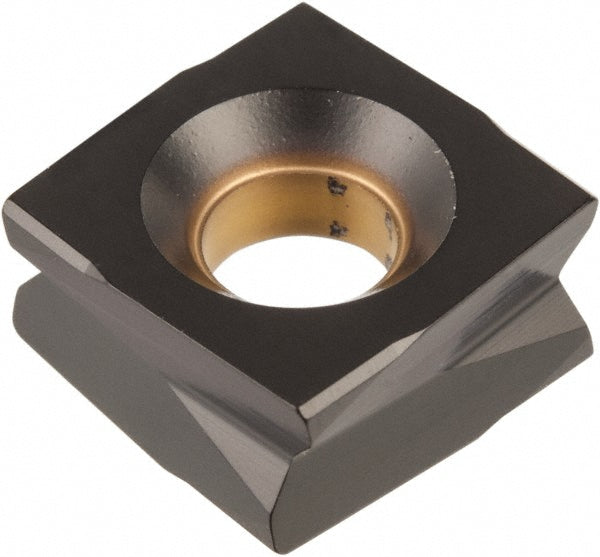

SPHX1205PCSRGPB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227157
MFR# 2227157ISO/ANSI# SPHX1205PCSRGPBCat# SPHX1205PCSRGPBSeries SPHX
$39.61List $48.35
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2227157 is a SPHX1205PCSRGPB solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSPHX1205PCSRGPB
Chip breakerGP
Coating finishTiN
Coating processCVD
Cutter series compatibilityFix-Perfect
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205PCSRGPB
Length0.2587
Length range0.0000 to 0.3200
Manufacturers catalog numberSPHX1205PCSRGPB
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2130
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
