Kennametal

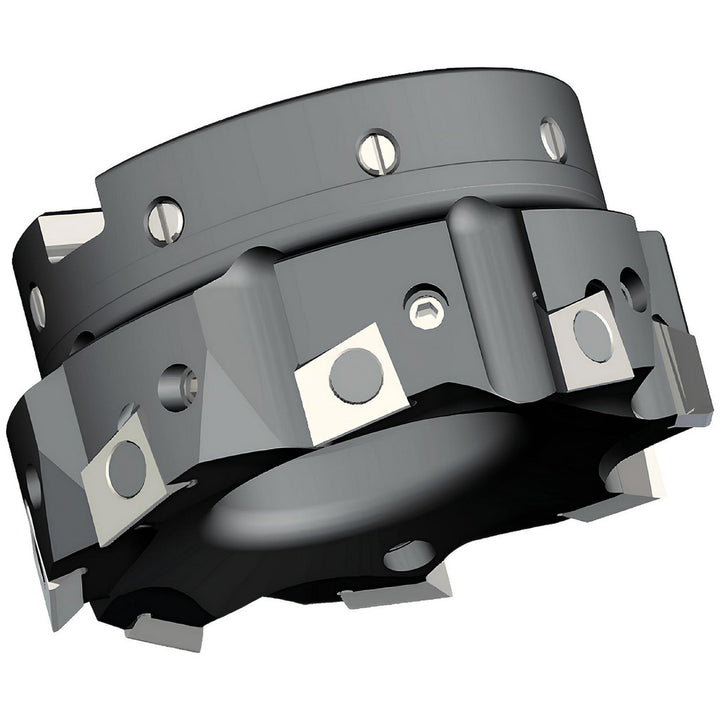

Indexable Milling Cutters - Kennametal 2235053
MFR# 2235053Series Fix-Perfect
$606.82List $740.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 2235053 indexable milling cutters. Series Fix-Perfect.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeBGHX 15L5...
Coolant throughNo
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodClamp
Keyway width0.3272
Lead angle0/90
Maximum body diameter2.4250
Maximum cutting diameter in2-1/2
Maximum depth of cut0.3940
Number of cutter inserts3
Number of flutes3
Overall height1.5700
RakePositive
Rake angle24.00
