Kennametal

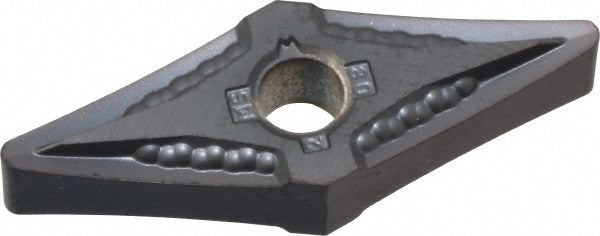

Diamond 35 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2244948
MFR# 2244948ISO/ANSI# VNMG332MSSeries KENLOC
$36.94List $44.30
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2244948 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMS
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332MS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number2244948
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
