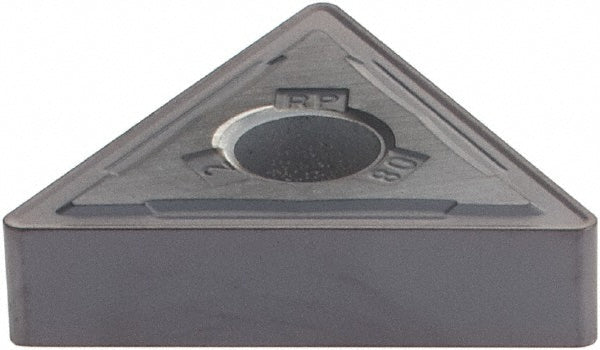

T - Triangle 1/2" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2245067

Kennametal

T - Triangle 1/2" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2245067

MFR# 2245067ISO/ANSI# TNMG220408Series KENLOC

$32.37List $38.83 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2245067 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.2031
Included angle60
Industry standard numberTNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number2245067
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
