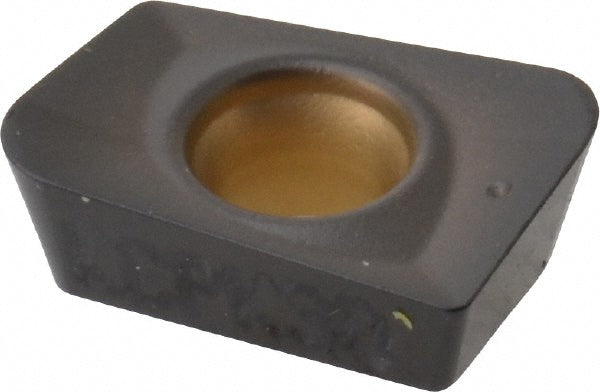

ADKT103516PDERLC Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2245283
MFR# 2245283ISO/ANSI# ADKT103516PDERLCCat# ADKT103516PDERLCSeries ADKT
$31.09List $37.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2245283 is a ADKT103516PDERLC solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Chip breakerLC
Coating finishTiN
Coating processCVD
Corner radius in1/16
Hole diameter0.1142
Included angle degree85
Inscribed circle0.5512
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code16224
Insert styleADKT
Iso codeADKT103516PDERLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT103516PDERLC
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5510
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
