Kennametal

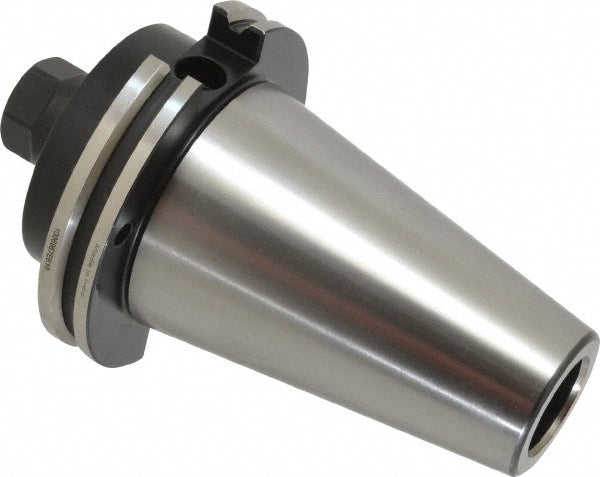

CAT50 Collet Chuck - Kennametal 2249706
MFR# 2249706
$262.23List $323.44
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2249706 is a CAT50 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.2590
Collet seriesER16
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.3937
Minimum collet capacity0.0200
Nose diameter1.1000
Overall length in6-1/2
Projection in2-1/2
Shank typeTaper
Taper sizeCAT50
Through coolantYes
