Kennametal

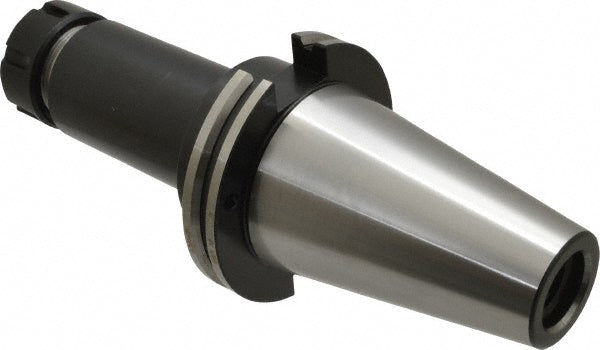

CAT50 Collet Chuck - Kennametal 2249715
MFR# 2249715
$311.70List $384.45
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2249715 is a CAT50 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.9690
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7874
Minimum collet capacity0.0800
Nose diameter1.9700
Overall length in10
Projection in6
Shank typeTaper
Taper sizeCAT50
Through coolantYes
