Kennametal

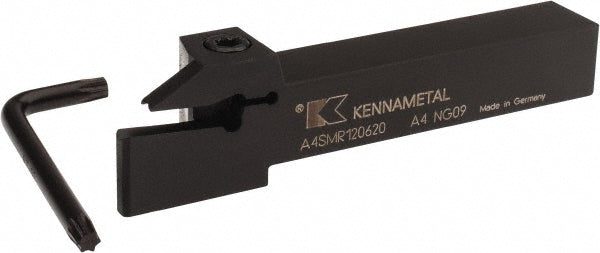

Indexable Grooving - Kennametal 2263175
MFR# 2263175Series A4
$215.77List $258.80
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2263175 indexable grooving. Series A4.
Specifications
Coolant throughNo
Full radius insertNo
Hand of holderRight Hand
Head height1.0600
Head length1.5700
Insert compatibilityA4..06..
Insert holding methodClamp
Insert seat size6.0
Maximum depth of cut0.7900
Minimum groove width0.2360
Overall length (mm)127.00
Shank height in3/4
Shank length3.4370
Shank width diameter in3/4
Toolholder styleA4SM
