Kennametal

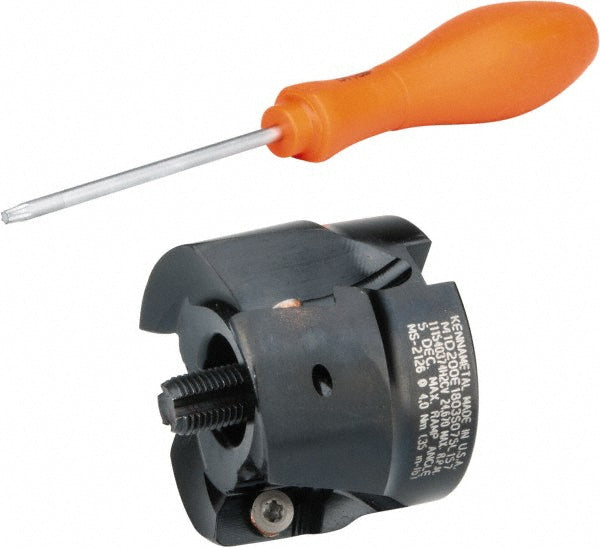

Indexable Milling Cutters - Kennametal 2267542
MFR# 2267542Series Mill 1-18
$646.55List $775.47
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 2267542 indexable milling cutters. Series Mill 1-18.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeEC18..; EP18..
Coolant hole diameter3.0000
Coolant throughYes
Cutting directionRight Hand
Hub diameter1.6882
Insert holding methodScrew
Keyway width0.3311
Lead angle0/90
Maximum body diameter1.9340
Maximum cutting diameter in2
Maximum depth of cut0.7100
Number of cutter inserts3
Number of flutes3
Overall height1.5750
