Kennametal

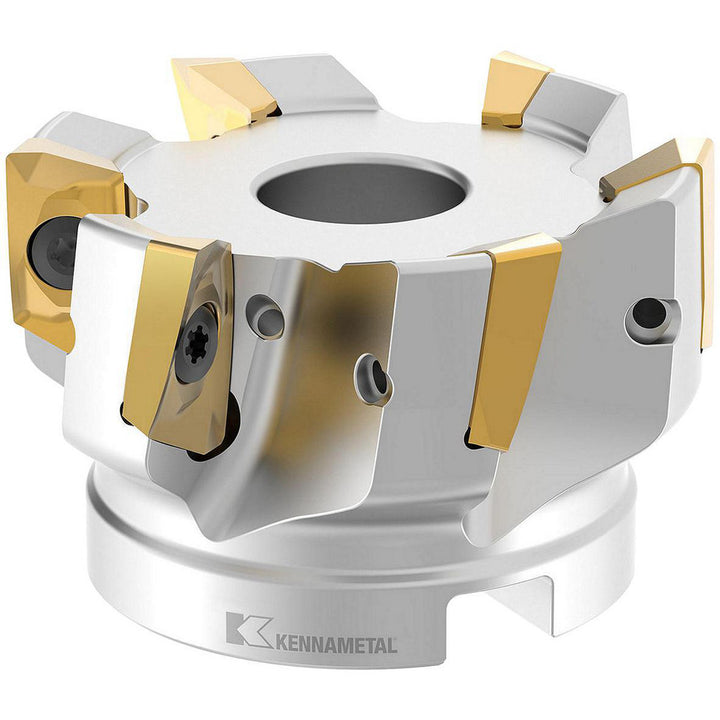

Indexable Milling Cutters - Kennametal 2267614
MFR# 2267614Series Mill 1-18
$636.19List $776.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Kennametal 2267614 indexable milling cutters. Series Mill 1-18.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeEC18..; EP18..
Coolant hole diameter3.0000
Coolant throughYes
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Keyway width0.3311
Lead angle0/90
Maximum body diameter2.4180
Maximum cutting diameter in2-1/2
Maximum depth of cut0.7100
Number of cutter inserts4
Number of flutes4
Overall height1.5750
