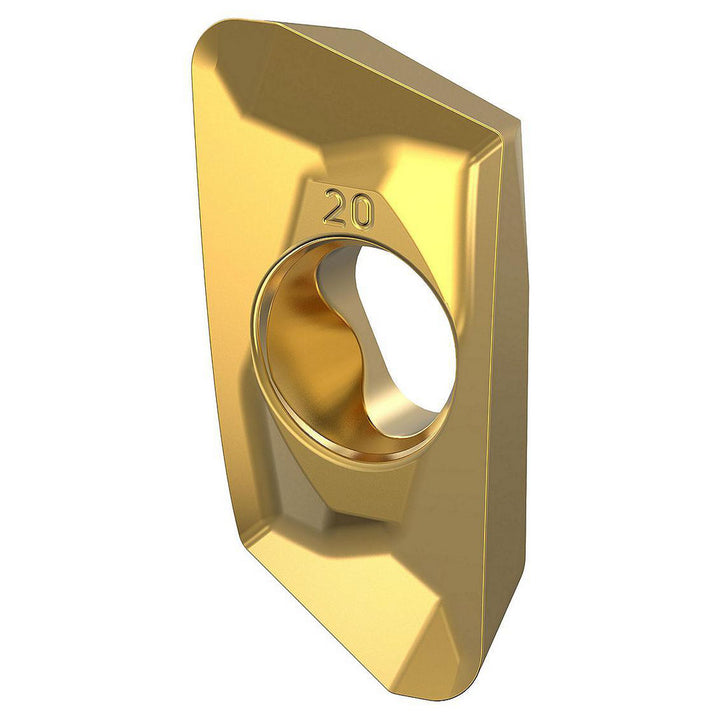

EDCT180504PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2271088

Kennametal

EDCT180504PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2271088

MFR# 2271088ISO/ANSI# EDCT180504PDFRLDJCat# EDCT180504PDFRLDJSeries EDCT

$32.33List $39.46 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2271088 is a EDCT180504PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeEC1804FJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-18
Cutting edge styleSharp
Included angle degree70
Inscribed circle0.4320
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1804
Insert styleEDCT
Iso codeEDCT180504PDFRLDJ
Length0.8563
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180504PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4320
