Kennametal

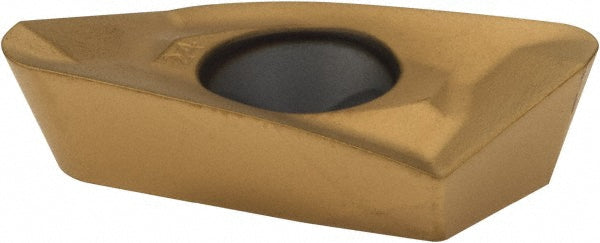

EDPT180524PDERGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2271097
MFR# 2271097ISO/ANSI# EDPT180524PDERGDCat# EDPT180524PDERGDSeries EDPT
$32.92List $39.49
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2271097 is a EDPT180524PDERGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1824E
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius0.0950
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4300
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1824
Insert styleEDPT
Iso codeEDPT180524PDERGD
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180524PDERGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4300
