Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 2274949
MFR# 2274949Cat# A4G187I04P2GMNSeries A4
$41.96List $51.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

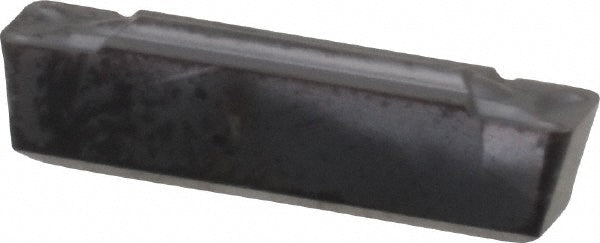

The Kennametal 2274949 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.1874
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size04
Insert styleG
Manufacturers catalog numberA4G187I04P2GMN
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
