Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 2275078
MFR# 2275078Cat# A4R250I06P00GMNSeries A4
$56.82List $68.15
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

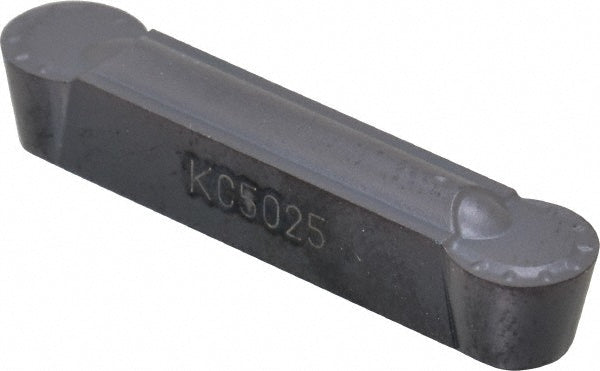

The Kennametal 2275078 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutting width0.2500
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size250
Insert styleR
Manufacturers catalog numberA4R250I06P00GMN
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.2047
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolYes
Overall length1.1811
