Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 2275084
MFR# 2275084Cat# A4G187I04P2GMNSeries A4
$49.52List $59.40
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

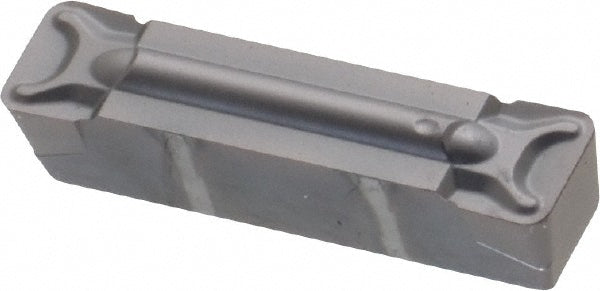

The Kennametal 2275084 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.1874
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size04
Insert styleG
Manufacturers catalog numberA4G187I04P2GMN
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
