Kennametal

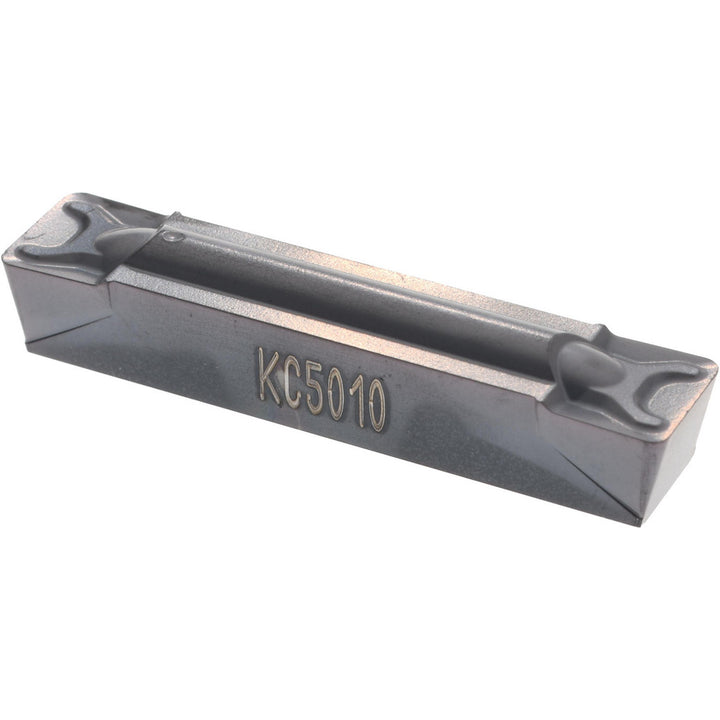

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2275086
MFR# 2275086Cat# A4G250I06P2GMNSeries A4
$56.82List $68.15
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2275086 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size250I06
Insert styleG
Manufacturers catalog numberA4G250I06P2GMN
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1850
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length1.1811
