Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 2275093
MFR# 2275093Cat# A4R250I06P00GMNSeries A4
$48.13List $58.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

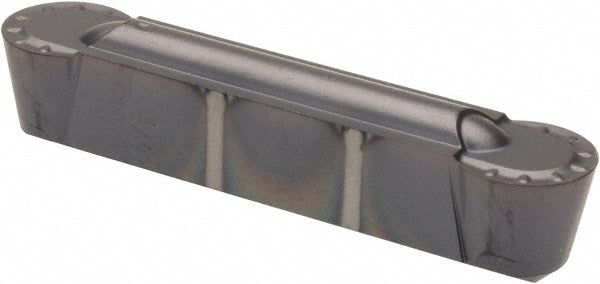

The Kennametal 2275093 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutting width0.2500
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size250
Insert styleR
Manufacturers catalog numberA4R250I06P00GMN
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2047
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolYes
Overall length1.1811
