Kennametal
1/4" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2383552
MFR# 2383552
$211.52List $266.57
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
CoatingTiAlN
Description

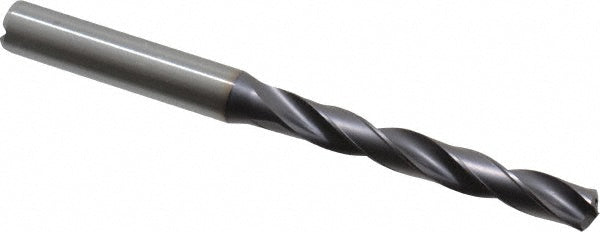

The Kennametal 2383552 is a 1/4" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit finish coatingTiAlN
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0420
Flute length2.0866
Flute typeSpiral
Maximum drilling depth1.6930
Overall length3.5827
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
