Kennametal

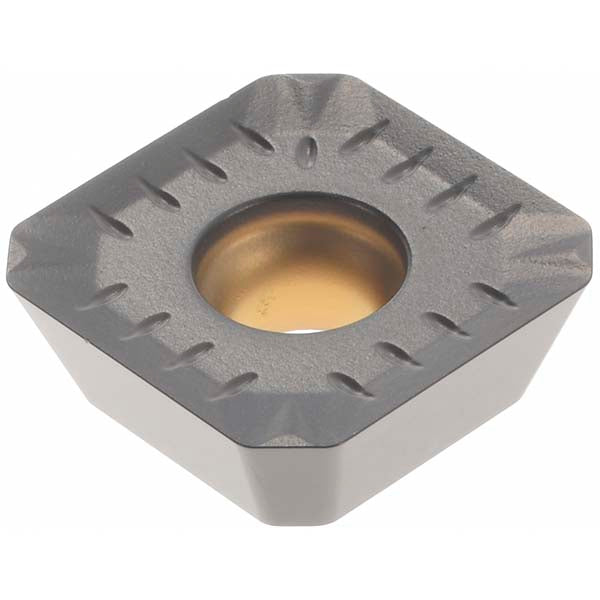

SEKT1404AEENGP2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390260
MFR# 2390260ISO/ANSI# SEKT1404AEENGP2Cat# SEKT1404AEENGP2Series SEKT
$40.74List $48.87
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2390260 is a SEKT1404AEENGP2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEKT443AEEN7GP2
Chip breakerGP2
Coating finishTiN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityKSSM
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code443
Insert styleSEKT
Iso codeSEKT1404AEENGP2
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKT1404AEENGP2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5512
