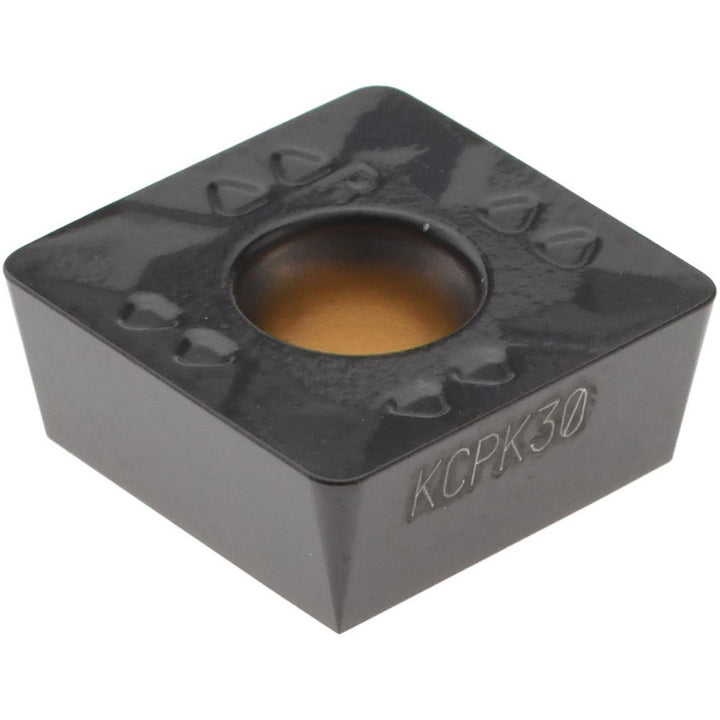

SPET10T3PPERGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390275

Kennametal

SPET10T3PPERGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390275

MFR# 2390275ISO/ANSI# SPET10T3PPERGB2Cat# SPET10T3PPERGB2Series SPET

$31.13List $37.34 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2390275 is a SPET10T3PPERGB2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1339
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size31
Insert size code3125
Insert styleSPET
Iso codeSPET10T3PPERGB2
Manufacturers catalog numberSPET10T3PPERGB2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle11.00
Thickness in5/32
Thickness range0.1500 to 0.1750
