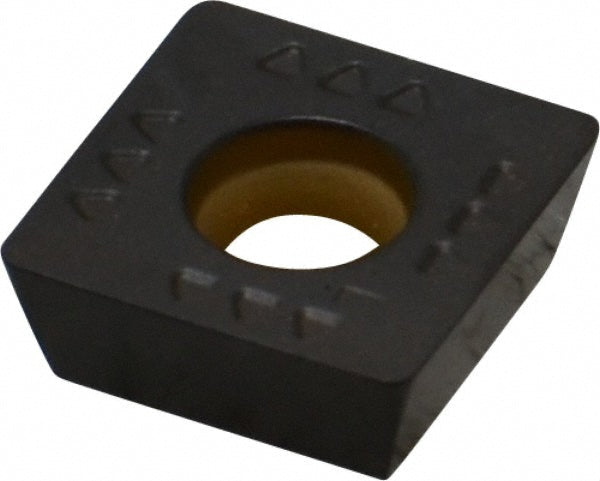

SDET1204PDELGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390283

Kennametal

SDET1204PDELGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390283

MFR# 2390283ISO/ANSI# SDET1204PDELGB2Cat# SDET1204PDELGB2Series SDET

$37.05List $44.44 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2390283 is a SDET1204PDELGB2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDELGB2
Manufacturers catalog numberSDET1204PDELGB2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
