Kennametal

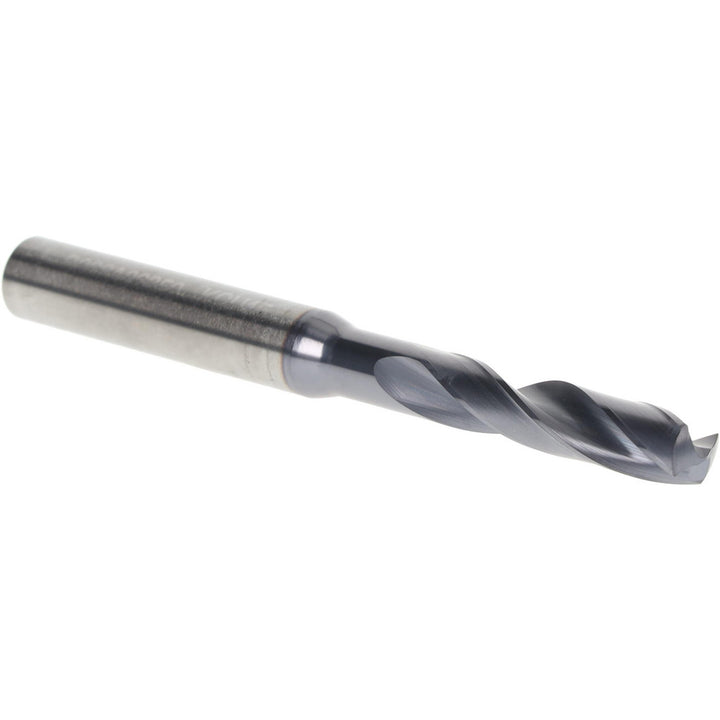

1/4" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2391902
MFR# 2391902Series B966
$95.54List $122.36
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingTiAlN
Description
The Kennametal 2391902 is a 1/4" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B966.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill point angle140
Drill point length (mm)1.07
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
