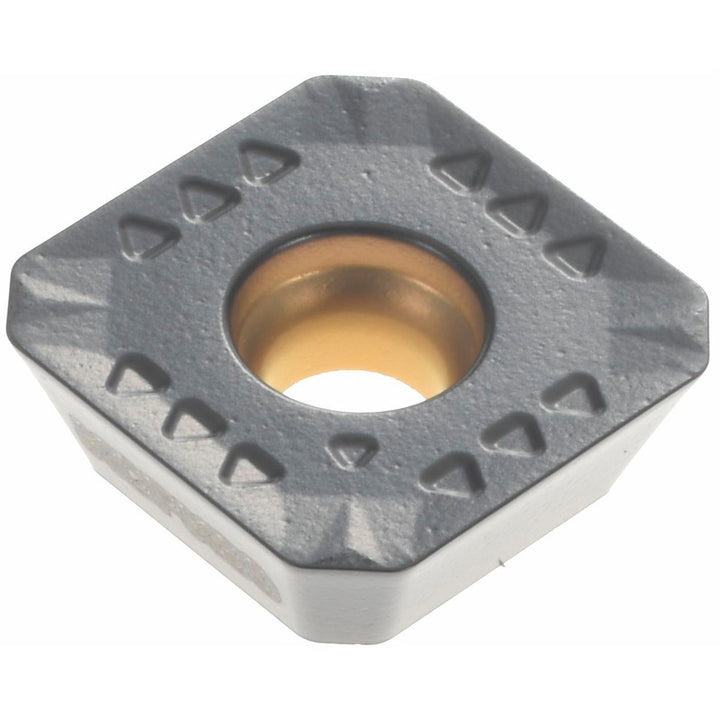

SEPT1404AEENGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2405373

Kennametal

SEPT1404AEENGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2405373

MFR# 2405373ISO/ANSI# SEPT1404AEENGB2Cat# SEPT1404AEENGB2Series SEPT

$34.27List $41.11 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2405373 is a SEPT1404AEENGB2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeSEPT443AEEN7GB2
Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius0.0394
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code443
Insert styleSEPT
Iso codeSEPT1404AEENGB2
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSEPT1404AEENGB2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5512
