Kennametal

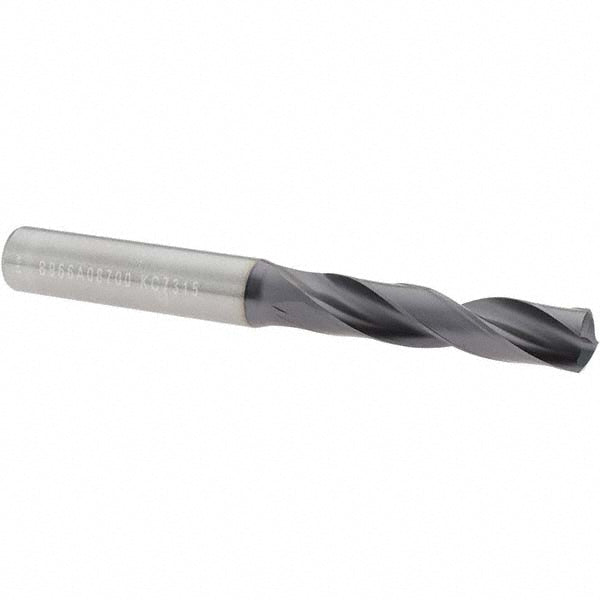

0.3425" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2425143
MFR# 2425143Series B966
$108.29List $138.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 2425143 is a 0.3425" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B966.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size0.3425
Drill bit size range0.3000 to 0.3500
Drill point angle140
Drill point length (mm)1.50
Flute length (mm)47.00
Flute typeRegular Spiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
