Kennametal
0.3583" Solid Carbide Drill Bit, 140° point - Kennametal 2425146
MFR# 2425146Series B966A
$108.29List $138.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

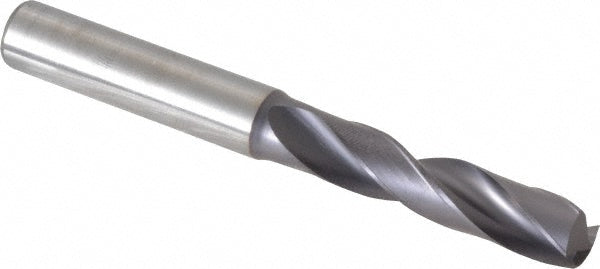

The Kennametal 2425146 is a 0.3583" Solid Carbide drill bit, 140° point. Suited for cast iron, steel. Series B966A.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeDynapoint High Performance
Drill bit size0.3583
Drill bit size range0.3500 to 0.4000
Drill point angle140
Drill point length (mm)1.60
Flute length (mm)47.00
Flute typeSpiral
Material gradeKC7315
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length (mm)89.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)10.00
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
