Kennametal

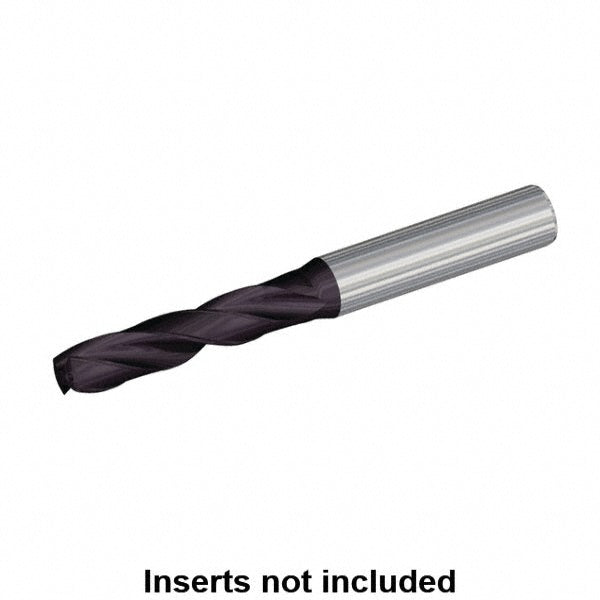

0.1457" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2425305
MFR# 2425305
$130.40List $167.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 2425305 is a 0.1457" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1457
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0240
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth0.9055
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
