0.2441" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2425323

Kennametal

0.2441" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2425323

MFR# 2425323

$171.07List $219.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

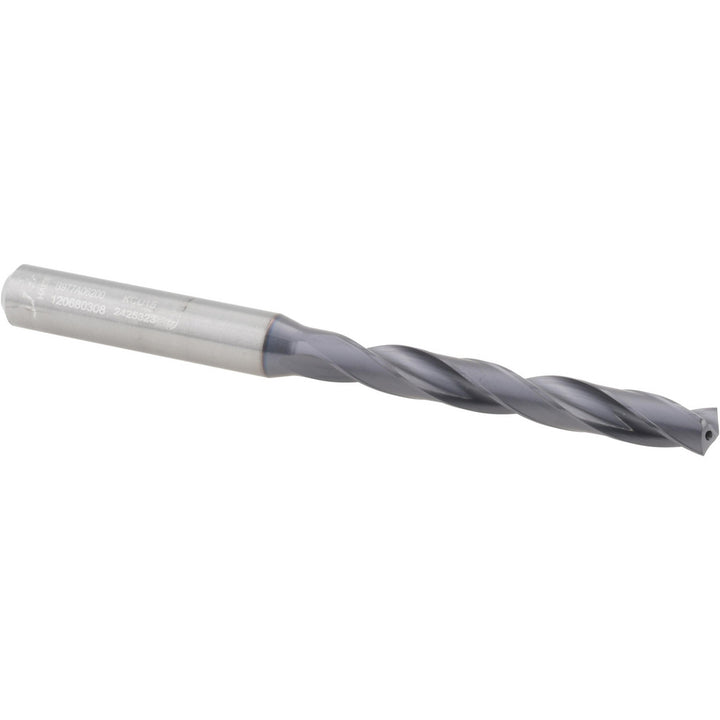

The Kennametal 2425323 is a 0.2441" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2441
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length (mm)1.00
Flute length2.0866
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)43.00
Overall length3.5827
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
