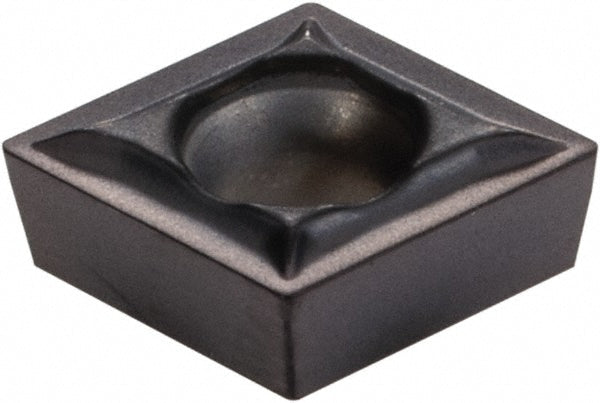

Diamond 80 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425659

Kennametal

Diamond 80 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425659

MFR# 2425659ISO/ANSI# CCMT21505LFSeries Screw-On

$24.92List $30.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2425659 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21505
Insert styleCCMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number2425659
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
